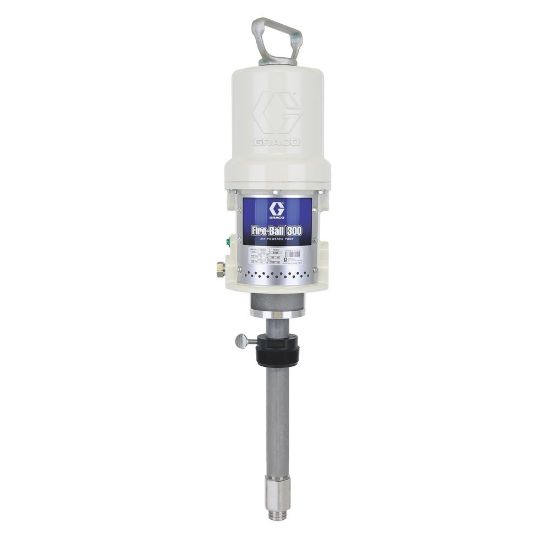

224825

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 224825

Products specifications

Attribute name	Attribute value
UOM	EA	Series	300
Weight	22 lb	Cycles Per Gallon	90
Maximum Working Pressure	2700 psi	Sound Pressure Level	77.8 dB(A)
Air Motor Effective Diameter	3 Inch	Fluid Outlet Size	1/4 Inch
Air Inlet Size	3/8 Inch	Pump Ratio	15:1
Fluid Outlet Thread Gender	Female	Model	Fire-Ball
Maximum Continuous Cycle Rate	66 CPM	Fluid Outlet Thread Type	NPT
Maximum Intermittent Cycle Rate	66 CPM	Air Inlet Thread Type	NPT
Maximum Air Inlet Pressure	180 psi	Air Inlet Thread Gender	Female
Sound Power Level	85.6 dB(A)
