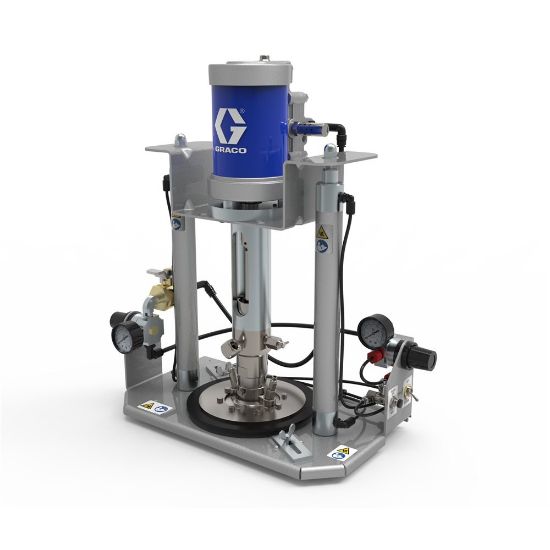

235871

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 235871

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Piston
Weight	18.5 lb	Ram Post Diameter	172 mm
Material	Rubber	Material Container Volume	1 gal
Maximum Working Pressure	1200 psi	Number of Wipers	Single Ring
Series	190	Ambient/Warm Melt/Hot Melt	Ambient
Fluid Outlet Thread Gender	Female	Sound Pressure Level	76.5 dB(A)
Air Inlet Size	1/4 Inch	Maximum Operating Temperature	140 deg F
Air Inlet Thread Gender	Female	Control Options	Standard
Fluid Outlet Thread Type	NPT	Seal Material	Tivar Ceram-P
Air Inlet Thread Type	NPT	Maximum Air Inlet Pressure	100 psi
Model	DynaMite	Fluid Outlet Size	1/4 Inch
