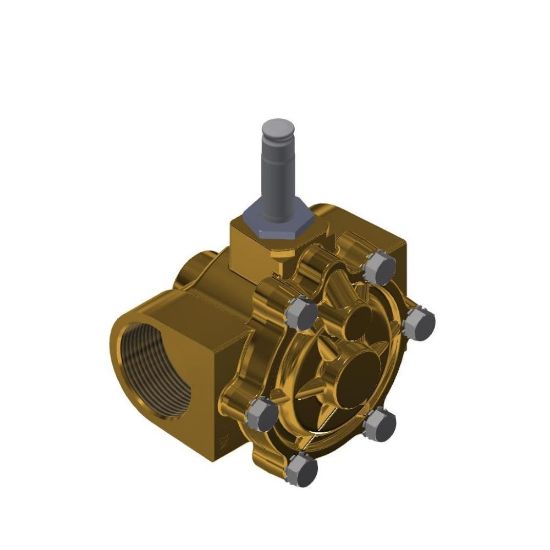

12F24C2148A3F - 24 Series - General Purpose Solenoid Valves

High Flow General Purpose Solenoid Valves

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 12F24C2148A3F

$334.31/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	General Purpose
Function	Normally Closed	Coil Type	Requires Coil from Chart 6
Port Size	3/4	Port Type	NPT
Installation	IOM 7235	Orifice Size	3/4
Body Material	BRASS	Input Voltage	Pressure Vessel Only
Seal Material	NBR	Actuation Type	Internally Piloted
Insulation Class	N/A	Power Consumption	11.5
Specifications Met	CE - Low Voltage, EMC	Valve Configuration	2 Way
Main Flow Coefficient	6.5	Ingress Protection Rating	N/A
Maximum Fluid Temperature	150.0	Preventive Maintenance Kit	12F24C2148A3FR
Maximum Ambient Temperature	77.0	Maximum Pressure Differential	125.0
Minimum Pressure Differential	5.0	Division	Fluid Control Division
Media	General Purpose	Port Size	3/4 inch
Port Type	NPT	Input Voltage	Pressure Vessel Only
Actuation Type	Internally Piloted	Power Consumption	11.5 W
Body Material	Brass	Seal Material	NBR
Specifications Met	CE - Low Voltage, EMC	Maximum Pressure Differential	125.0 psi
Ingress Protection Rating	N/A	Function	Normally Closed
Coil Type	Requires Coil from Chart 6	Maximum Fluid Temperature	150.0 °F
Minimum Pressure Differential	5.0 psi	Main Flow Coefficient	6.5 Cv
Installation	IOM 7235	Orifice Size	3/4 inch
Insulation Class	N/A	Valve Configuration	2 Way
Preventive Maintenance Kit	12F24C2148A3FR	Maximum Ambient Temperature	77.0 °F
