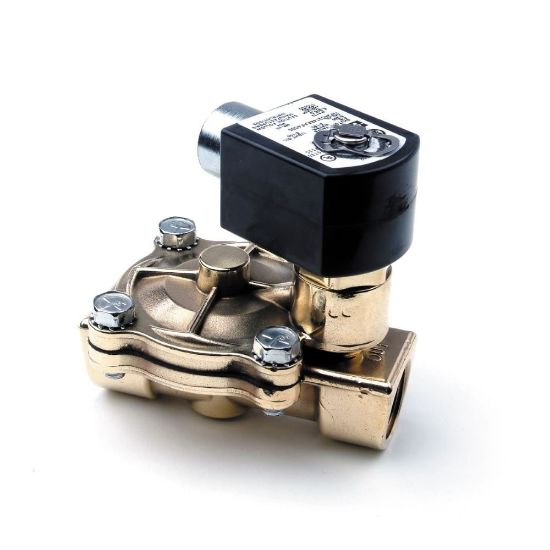

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

12F24C2148A3F4C80 - 24 Series - General Purpose Solenoid Valves

High Flow General Purpose Solenoid Valves

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 12F24C2148A3F4C80

$409.10/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	General Purpose
Function	Normally Closed	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Port Size	3/4	Port Type	NPT
Installation	IOM 7235	Orifice Size	3/4
Body Material	BRASS	Input Voltage	24.0
Seal Material	NBR	Actuation Type	Internally Piloted
Insulation Class	Class F	Power Consumption	11.5
Specifications Met	CE - Low Voltage, EMC	Valve Configuration	2 Way
Main Flow Coefficient	6.5	Ingress Protection Rating	NEMA 4,4X
Maximum Fluid Temperature	150.0	Preventive Maintenance Kit	12F24C2148A3FR
Maximum Ambient Temperature	77.0	Maximum Pressure Differential	125.0
Minimum Pressure Differential	5.0	Division	Fluid Control Division
Media	General Purpose	Port Size	3/4 inch
Port Type	NPT	Input Voltage	24.0 VDC
Actuation Type	Internally Piloted	Power Consumption	11.5 W
Body Material	Brass	Seal Material	NBR
Specifications Met	CE - Low Voltage, EMC	Maximum Pressure Differential	125.0 psi
Ingress Protection Rating	NEMA 4,4X	Function	Normally Closed
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Maximum Fluid Temperature	150.0 °F
Minimum Pressure Differential	5.0 psi	Main Flow Coefficient	6.5 Cv
Installation	IOM 7235	Orifice Size	3/4 inch
Insulation Class	Class F	Valve Configuration	2 Way
Preventive Maintenance Kit	12F24C2148A3FR	Maximum Ambient Temperature	77.0 °F
