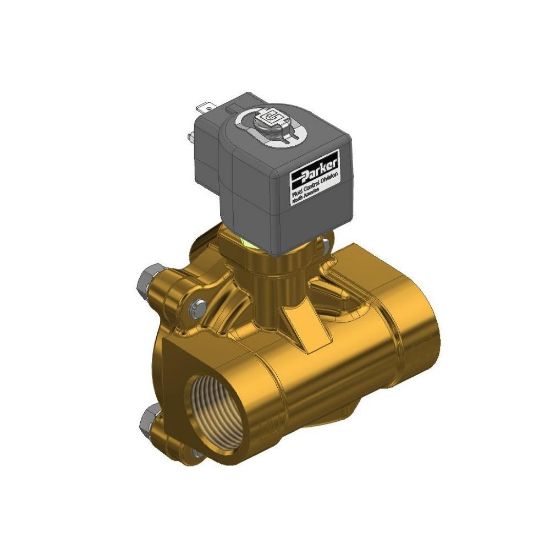

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

16F24C2164A3FPH80 - 24 Series - General Purpose Solenoid Valves

High Flow General Purpose Solenoid Valves

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 141 days
Partner Available:	Backordered

SKU 16F24C2164A3FPH80

$484.88/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Port Type	NPT	Seal Material	NBR
Coil Type	DIN 43650A / ISO 4400	Media	General Purpose
Function	Normally Closed	Input Voltage	24.0
Actuation Type	Internally Piloted	Insulation Class	Class F
Power Consumption	11.5	Valve Configuration	2 Way
Ingress Protection Rating	NEMA 4,4X	Maximum Fluid Temperature	150.0
Maximum Ambient Temperature	77.0	Minimum Pressure Differential	5.0
Installation	IOM 7235	Specifications Met	CE - Low Voltage, EMC
Maximum Pressure Differential	125.0	Port Size	1
Orifice Size	1	Main Flow Coefficient	13.0
Preventive Maintenance Kit	16F24C2164A3FR	Preventive Maintenance Kit	16F24C2164A3FR
Orifice Size	1 inch	Port Type	NPT
Specifications Met	CE - Low Voltage, EMC	Maximum Fluid Temperature	150.0 °F
Ingress Protection Rating	NEMA 4,4X	Maximum Pressure Differential	125.0 psi
Body Material	Brass	Actuation Type	Internally Piloted
Minimum Pressure Differential	5.0 psi	Seal Material	NBR
Insulation Class	Class F	Coil Type	DIN 43650A / ISO 4400
Maximum Ambient Temperature	77.0 °F	Division	Fluid Control Division
Power Consumption	11.5 W	Valve Configuration	2 Way
Input Voltage	24.0 VDC	Media	General Purpose
Installation	IOM 7235	Port Size	1 inch
Function	Normally Closed	Main Flow Coefficient	13.0 Cv
