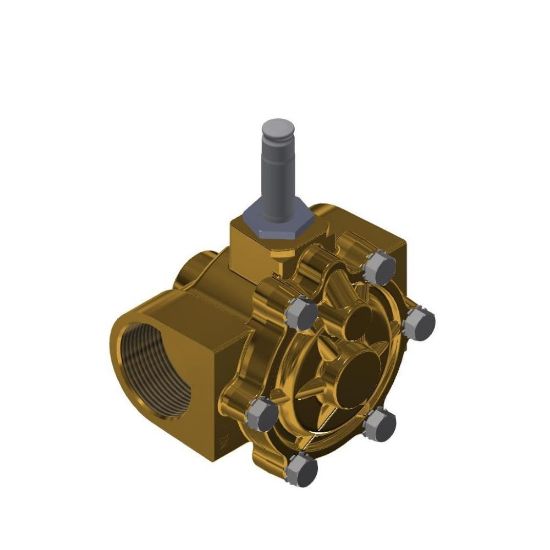

24F24C2180A3F - 24 Series - General Purpose Solenoid Valves

High Flow General Purpose Solenoid Valves

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 24F24C2180A3F

$725.05/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Port Type	NPT	Seal Material	NBR
Coil Type	Requires Coil from Chart 6	Media	General Purpose
Function	Normally Closed	Input Voltage	Pressure Vessel Only
Actuation Type	Internally Piloted	Insulation Class	N/A
Power Consumption	11.5	Specifications Met	N/A
Valve Configuration	2 Way	Ingress Protection Rating	N/A
Maximum Fluid Temperature	150.0	Maximum Ambient Temperature	77.0
Minimum Pressure Differential	5.0	Installation	IOM 7235
Maximum Pressure Differential	125.0	Port Size	1-1/2
Orifice Size	1-1/4	Main Flow Coefficient	22.5
Preventive Maintenance Kit	24F24C2180A3FR	Division	Fluid Control Division
Media	General Purpose	Port Size	1-1/2 inch
Port Type	NPT	Input Voltage	Pressure Vessel Only
Actuation Type	Internally Piloted	Power Consumption	11.5 W
Body Material	Brass	Seal Material	NBR
Specifications Met	N/A	Maximum Pressure Differential	125.0 psi
Ingress Protection Rating	N/A	Function	Normally Closed
Coil Type	Requires Coil from Chart 6	Maximum Fluid Temperature	150.0 °F
Minimum Pressure Differential	5.0 psi	Main Flow Coefficient	22.5 Cv
Installation	IOM 7235	Orifice Size	1-1/4 inch
Insulation Class	N/A	Valve Configuration	2 Way
Preventive Maintenance Kit	24F24C2180A3FR	Maximum Ambient Temperature	77.0 °F
