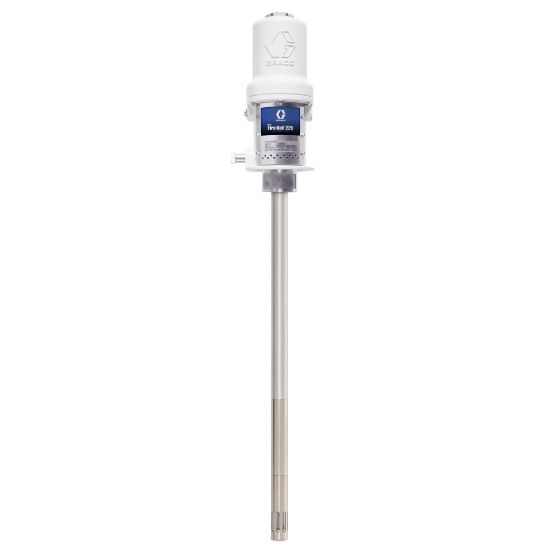

246780

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 246780

Products specifications

Attribute name	Attribute value
UOM	EA	Series	225
Maximum Working Pressure	8400 psi	Weight	15 lb
Fluid Outlet Size	1/4 Inch	Sound Pressure Level	77.8 dB(A)
Air Motor Effective Diameter	2.25 Inch	Air Inlet Size	3/8 Inch
Maximum Continuous Cycle Rate	60 CPM	Model	Mini Fire-Ball
Maximum Intermittent Cycle Rate	100 CPM	Fluid Outlet Thread Gender	Female
Maximum Air Inlet Pressure	140 psi	Pump Ratio	50:1
Air Inlet Thread Type	NPT	Fluid Outlet Thread Type	NPT
Fluid Inlet Type	Slotted	Sound Power Level	85.6 dB(A)
Seal Material	Polyurethane	Air Inlet Thread Gender	Female
