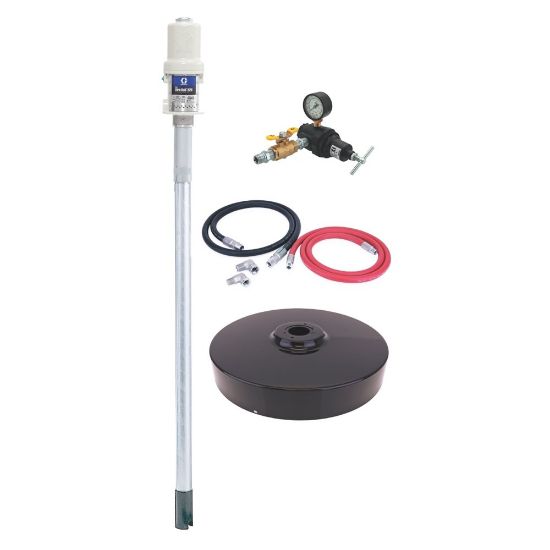

246906

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 246906

Products specifications

Attribute name	Attribute value
UOM	EA	Series	225
Cycles Per Gallon	43.5	Weight	16 lb
Maximum Working Pressure	540 psi	Fluid Inlet Thread Type	NPT
Pump Ratio	3:1	Air Motor Effective Diameter	2.25 Inch
Sound Pressure Level	77.8 dB(A)	Maximum Continuous Cycle Rate	100 CPM
Maximum Air Consumption	20 SCFM	Fluid Outlet Thread Gender	Female
Model	Mini Fire-Ball	Fluid Outlet Size	1/2 Inch
Air Inlet Thread Gender	Female	Sound Power Level	85.6 dB(A)
Fluid Inlet Size	1-1/2 Inch	Maximum Air Inlet Pressure	180 psi
Fluid Inlet Thread Gender	Female	Fluid Outlet Thread Type	NPT
Air Inlet Size	3/8 Inch	Air Inlet Thread Type	NPT
