*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

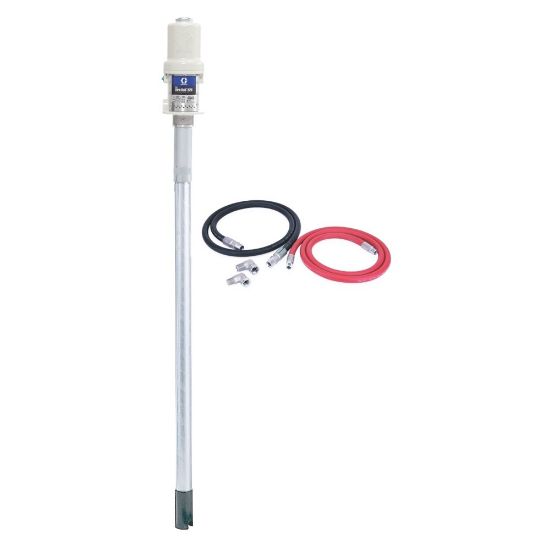

246907

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 246907

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	16 lb
Maximum Working Pressure	540 psi	Series	225
Cycles Per Gallon	43.5	Fluid Inlet Size	1-1/2 Inch
Fluid Inlet Thread Gender	Female	Maximum Continuous Cycle Rate	100 CPM
Air Inlet Thread Type	NPT	Fluid Outlet Thread Type	NPT
Sound Power Level	85.6 dB(A)	Air Inlet Thread Gender	Female
Maximum Air Inlet Pressure	180 psi	Pump Ratio	3:1
Air Motor Effective Diameter	2.25 Inch	Sound Pressure Level	77.8 dB(A)
Air Inlet Size	3/8 Inch	Maximum Air Consumption	20 SCFM
Model	Mini Fire-Ball	Fluid Outlet Size	1/2 Inch
Fluid Outlet Thread Gender	Female	Fluid Inlet Thread Type	NPT
