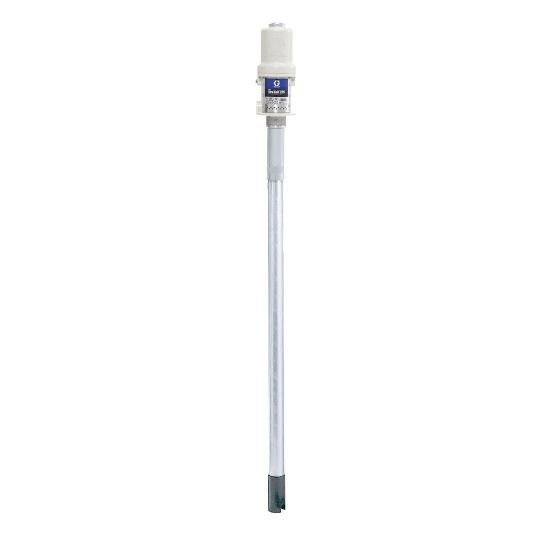

248097

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 248097

Products specifications

Attribute name	Attribute value
UOM	EA	Series	225
Cycles Per Gallon	43.5	Maximum Working Pressure	540 psi
Weight	16 lb	Sound Pressure Level	77.8 dB(A)
Air Motor Effective Diameter	2.25 Inch	Fluid Outlet Thread Type	NPT
Air Inlet Size	3/8 Inch	Model	Mini Fire-Ball
Fluid Outlet Thread Gender	Female	Fluid Outlet Size	1/2 Inch
Maximum Air Consumption	20 SCFM	Pump Ratio	3:1
Fluid Inlet Thread Type	NPT	Portable	Yes
Fluid Inlet Thread Gender	Female	Maximum Continuous Cycle Rate	100 CPM
Air Inlet Thread Type	NPT	Maximum Air Inlet Pressure	180 psi
Fluid Inlet Size	1-1/2 Inch	Air Inlet Thread Gender	Female
Sound Power Level	85.6 dB(A)
