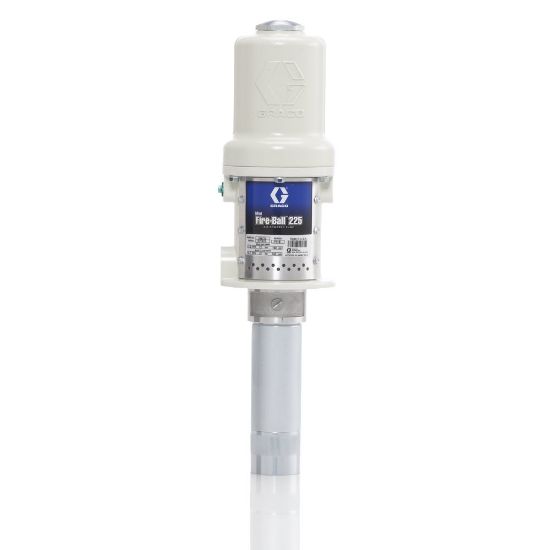

248230

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 248230

Products specifications

Attribute name	Attribute value
UOM	EA	Cycles Per Gallon	43.5
Maximum Working Pressure	540 psi	Weight	16 lb
Series	225	Maximum Air Consumption	20 SCFM
Model	Mini Fire-Ball	Fluid Outlet Thread Gender	Female
Pump Ratio	3:1	Fluid Inlet Thread Type	NPT
Maximum Continuous Cycle Rate	100 CPM	Fluid Outlet Size	1/2 Inch
Maximum Air Inlet Pressure	180 psi	Air Inlet Thread Gender	Female
Sound Power Level	85.6 dB(A)	Fluid Inlet Thread Gender	Female
Fluid Inlet Size	1-1/2 Inch	Air Motor Effective Diameter	2.25 Inch
Sound Pressure Level	77.8 dB(A)	Air Inlet Size	3/8 Inch
Air Inlet Thread Type	NPT	Fluid Outlet Thread Type	NPT
