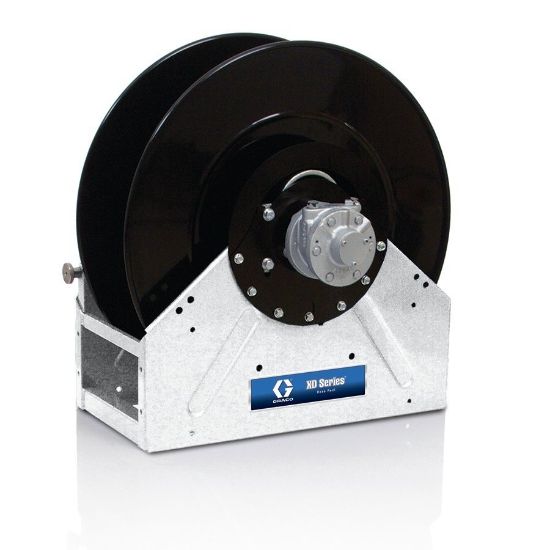

24R430

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24R430

Products specifications

Attribute name	Attribute value
UOM	EA	Reel Thread Type	NPT
Maximum Working Pressure	3000 psi	Series	60
Rated Power	0.4 HP	Bare Reel	1
Type	Bare Reel	Maximum Temperature	180 deg F
Outlet Size	1 Inch	Overall Length	26 Inch
Hose Length	50 ft	Outlet Thread Gender	Female
Operating Voltage	115 VAC	Inlet Thread Type	NPT
Rated Speed	500 RPM	Rating Current	6.5 A
Outlet Thread Type	NPT	Model	XD
Recommended Environment	Indoor;Outdoor	Overall Height	26.1 Inch
Dry Weight	134 lb	Overall Width	21.6 Inch
Color	White	Minimum Temperature	-40 deg F
Recommended Fluid Type	Oil;Grease	Frequency	50/60 Hz
Frame Type	Box	Inlet Thread Gender	Female
Inlet Size	1 Inch
