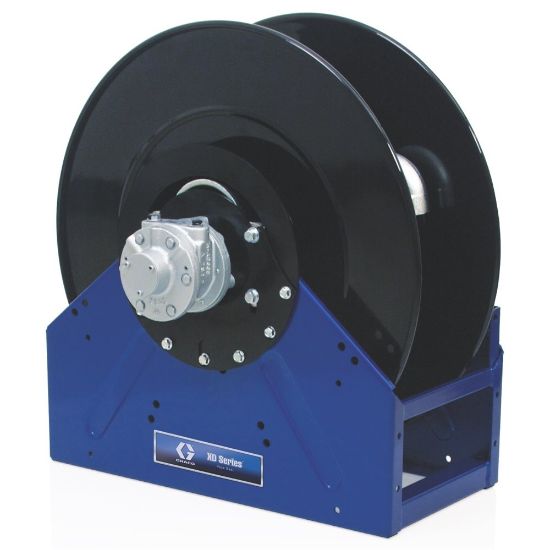

24R455

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24R455

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Bare Reel
Reel Thread Type	NPT	Maximum Working Pressure	3000 psi
Series	70	Rated Power	0.67 HP
Bare Reel	1	Inlet Size	1 Inch
Inlet Thread Gender	Female	Operating Voltage	24 VDC
Frame Type	Box	Overall Length	26 Inch
Color	Metallic Blue	Outlet Thread Gender	Female
Maximum Temperature	180 deg F	Overall Width	24.1 Inch
Inlet Thread Type	NPT	Outlet Size	1 Inch
Rating Current	38 A	Rated Speed	500 RPM
Minimum Temperature	-40 deg F	Recommended Environment	Indoor;Outdoor
Recommended Fluid Type	Oil	Model	XD
Overall Height	26.1 Inch	Dry Weight	133 lb
Outlet Thread Type	NPT	Hose Length	100 ft
