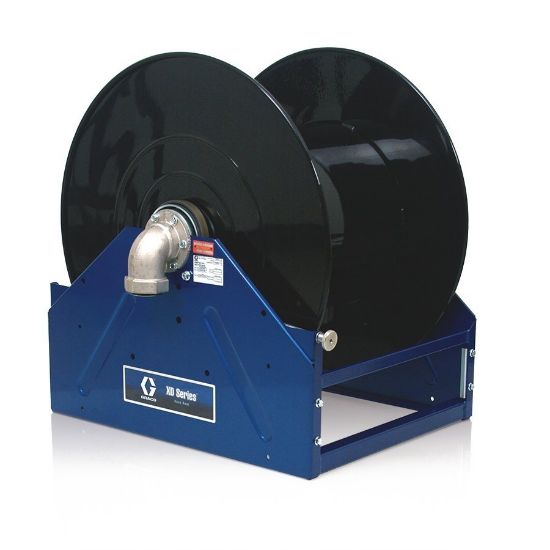

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24R531

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24R531

Products specifications

Attribute name	Attribute value
UOM	EA	Bare Reel	1
Type	Bare Reel	Reel Thread Type	NPT
Maximum Working Pressure	100 psi	Series	80
Overall Height	30.1 Inch	Overall Width	30.7 Inch
Minimum Temperature	-40 deg F	Hose Length	150 ft
Recommended Fluid Type	Air;Water;Diesel Fuel	Dry Weight	164 lb
Frame Type	Box	Inlet Thread Gender	Female
Inlet Size	1 Inch	Color	Metallic Blue
Outlet Thread Gender	Female	Maximum Temperature	180 deg F
Outlet Size	1 Inch	Overall Length	30.4 Inch
Inlet Thread Type	NPT	Recommended Environment	Indoor;Outdoor
Outlet Thread Type	NPT	Model	XD
