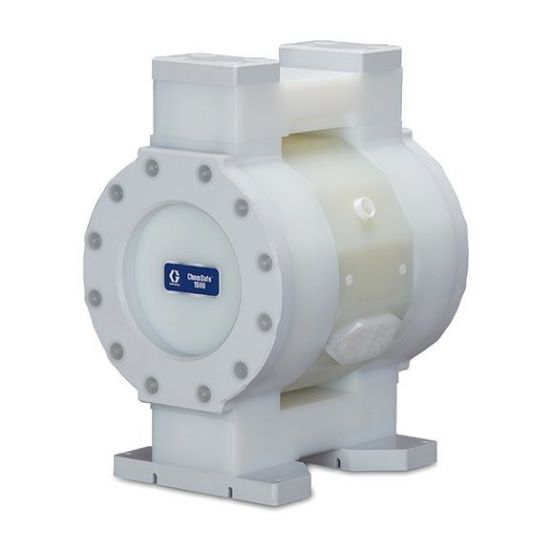

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24X422

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X422

Products specifications

Attribute name	Attribute value
UOM	EA	Series	1590
Connection Type	Threaded	Material	PTFE
Type	Pneumatic	Maximum Flow Rate	100 GPM
Fluid Inlet Thread Type	BSP	Center Section Material	Polypropylene
Manifold Configuration	Center Port	Maximum Solid Size	80 Inch
Fluid Outlet Thread Gender	Female	Air Inlet Thread Type	BSPT
Maximum Cycle Rate	230 CPM	Fluid Inlet Thread Gender	Female
Model	ChemSafe	Minimum Storage Temperature	32 deg F
Fluid Outlet Size	1-1/2 Inch	Maximum Air Consumption	46 SCFM
Fluid Outlet Thread Type	BSP	Maximum Operating Temperature	212 deg F
Minimum Operating Temperature	32 deg F	Fluid Inlet Size	1-1/2 Inch
Air Inlet Thread Gender	Female	Air Inlet Size	1/4 Inch
