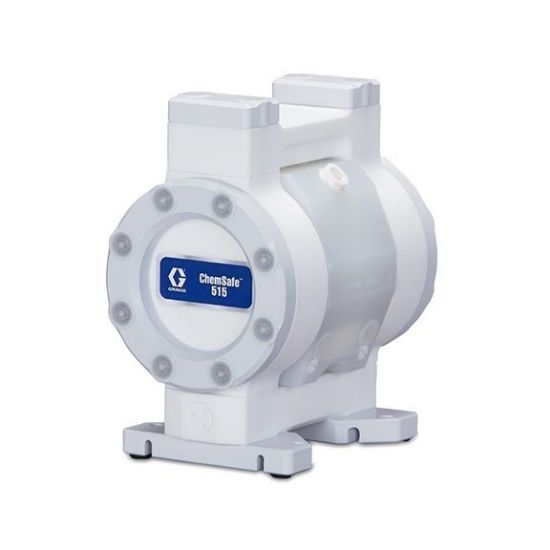

24X426

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X426

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	16 GPM
Series	515	Material	PTFE
Connection Type	Threaded	Type	Pneumatic
Air Inlet Size	1/4 Inch	Air Inlet Thread Gender	Female
Maximum Air Consumption	29 SCFM	Model	ChemSafe
Fluid Inlet Thread Gender	Female	Fluid Inlet Size	1/2 Inch
Center Section Material	Polypropylene	Maximum Operating Temperature	212 deg F
Minimum Operating Temperature	32 deg F	Manifold Configuration	Center Port
Minimum Storage Temperature	60 deg F	Fluid Outlet Thread Type	BSP
Maximum Cycle Rate	381 CPM	Maximum Storage Temperature	80 deg F
Fluid Outlet Thread Gender	Female	Fluid Inlet Thread Type	BSP
Fluid Outlet Size	1/2 Inch	Air Inlet Thread Type	BSPT
Maximum Solid Size	0.16 Inch
