*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

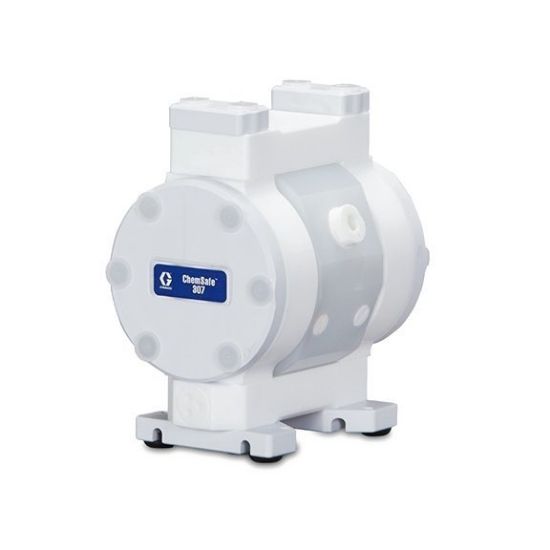

24X427

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X427

Products specifications

Attribute name	Attribute value
UOM	EA	Series	307
Connection Type	Threaded	Type	Pneumatic
Maximum Flow Rate	6.7 GPM	Material	PTFE
Maximum Air Consumption	9.3 SCFM	Fluid Inlet Thread Type	NPT
Center Section Material	Polypropylene	Maximum Cycle Rate	610 CPM
Fluid Outlet Thread Gender	Female	Maximum Solid Size	0.08 Inch
Air Inlet Thread Gender	Female	Model	ChemSafe
Fluid Inlet Thread Gender	Female	Minimum Storage Temperature	32 deg F
Manifold Configuration	Center Port	Air Inlet Size	1/8 Inch
Fluid Inlet Size	3/8 Inch	Fluid Outlet Thread Type	NPT
Fluid Outlet Size	3/8 Inch	Maximum Operating Temperature	212 deg F
Minimum Operating Temperature	32 deg F	Air Inlet Thread Type	NPT
