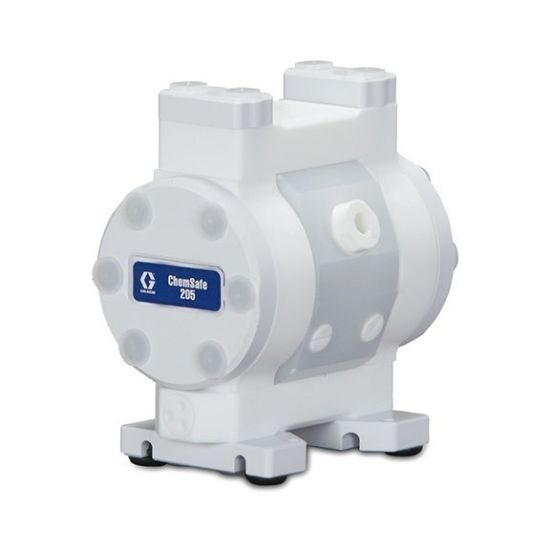

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24X430

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X430

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Pneumatic
Maximum Flow Rate	2.5 GPM	Fluid Section Material	PVDF (Kynar)
Material	PTFE	Series	205
Connection Type	Threaded	Maximum Air Consumption	4.8 SCFM
Fluid Inlet Size	1/4 Inch	Fluid Outlet Thread Gender	Female
Air Inlet Thread Gender	Female	Maximum Cycle Rate	375 CPM
Model	ChemSafe	Minimum Storage Temperature	32 deg F
Fluid Inlet Thread Gender	Female	Air Inlet Size	1/8 Inch
Manifold Configuration	Center Port	Minimum Operating Temperature	32 deg F
Fluid Outlet Thread Type	BSP	Air Inlet Thread Type	NPT
Maximum Operating Temperature	212 deg F	Maximum Solid Size	0.06 Inch
Fluid Outlet Size	1/4 Inch	Center Section Material	Polypropylene
Fluid Inlet Thread Type	BSP
