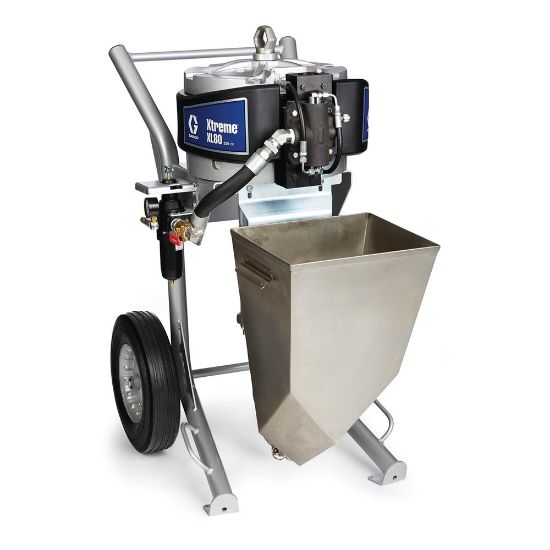

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24X594

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X594

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Single Leg
Series	XL80	Stroke Length	4.75 Inch
Maximum Working Pressure	7250 psi	Inlet Paint Strainer	8 Mesh;16 Mesh
Maximum Flow Rate	0.1 lpm @ 60 CPM	Hose Diameter	1/2;3/4 Inch
Maximum Sound Pressure Level	83 dB(A)	Power Source	Air
Maximum Air Pressure	88 psi	Maximum Tip Size	Variable Inch
Pump Type	Pneumatic Piston	Outlet Paint Filter	60 Mesh
Material Application	Paints;Primers	Pressure Control Type	Air Regulator
Maximum Fluid Working Pressure	7250 psi	Frame Configuration	Heavy-Duty Cart
Motor Type	Pneumatic;De-Icing	Control Type	Fixed Ratio
Pump Rod Type	Chromex	Hose Inlet Diameter	3/4 Inch
Gun Model	XHF	Number of Guns	1
Fluid Outlet Size	1 Inch	Model	King
Fluid Outlet Thread Type	NPT	Fluid Outlet Thread Gender	Female
Lower Type	Non-Filter	Fluid Inlet Thread Gender	Male
Fluid Inlet Thread Type	NPT	Fluid Inlet Size	1-1/4 Inch
Pump Sleeve Material	Hard Chrome;Stainless Steel
