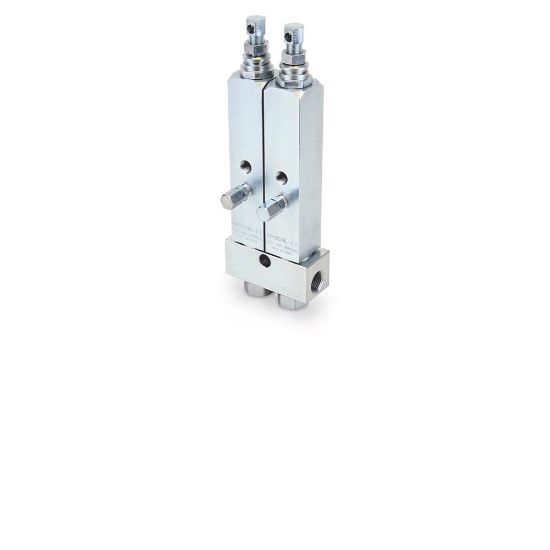

24X802

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X802

$338.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Grease Injector
Series	X	Maximum Working Pressure	414 bar; 6000 psi
Adjustable	Yes	Dispense Outlet Size	0.13 Inch
Maximum Output Volume	0.08 Cubic Inch	Dispense Outlet Thread Type	NPT
Cycle Indicator	Visual	Inlet Size	3/8 Inch
Compatible Metering Device	Single Line Parallel	Maximum Reset Pressure	1000 psi
Maximum Operating Pressure	6000 psi	Minimum Operating Pressure	1850 psi
Minimum Output Volume	0.015 Cubic Inch	Inlet Thread Type	NPT
Maximum NLGI Grade	#2	Compatible Material	Grease
Outlet Thread Type	NPT	Model	GL-1
Outlet Size	3/8 Inch
