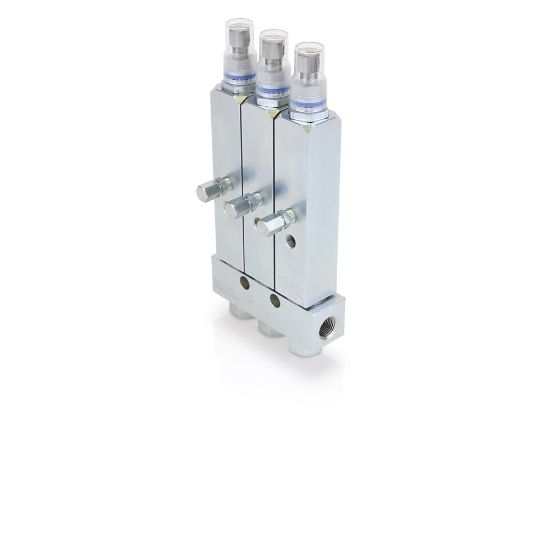

24X803

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X803

$434.15/each

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Grease Injector
Series	X	Maximum Working Pressure	414 bar; 6000 psi
Adjustable	Yes	Dispense Outlet Size	0.13 Inch
Maximum Output Volume	0.08 Cubic Inch	Dispense Outlet Thread Type	NPT
Suggested Operating Pressure	2500 psi	Inlet Thread Type	NPT
Compatible Material	Grease	Maximum Reset Pressure	1000 psi
Maximum NLGI Grade	#2	Inlet Size	3/8 Inch
Outlet Thread Type	NPT	Outlet Size	3/8 Inch
Minimum Output Volume	0.015 Cubic Inch	Minimum Operating Pressure	1850 psi
Model	GL-1	Compatible Metering Device	Single Line Parallel
Cycle Indicator	Visual	Maximum Operating Pressure	6000 psi
