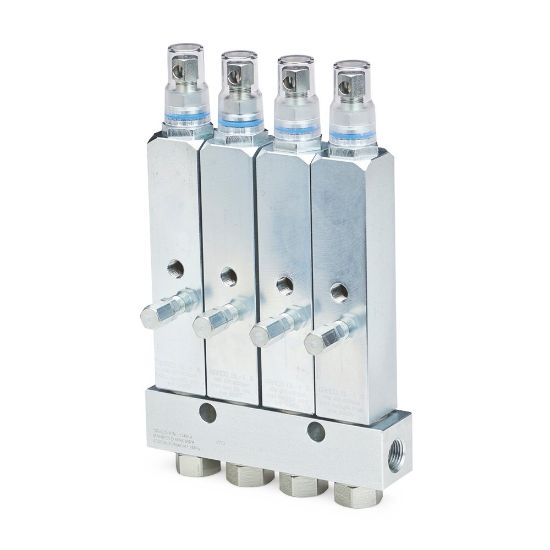

24X804

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X804

$570.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Grease Injector
Series	X	Maximum Working Pressure	414 bar; 6000 psi
Adjustable	Yes	Dispense Outlet Size	0.13 Inch
Maximum Output Volume	0.08 Cubic Inch	Dispense Outlet Thread Type	NPT
Suggested Operating Pressure	2500 psi	Outlet Thread Type	NPT
Maximum Operating Pressure	6000 psi	Cycle Indicator	Visual
Inlet Thread Type	NPT	Inlet Size	3/8 Inch
Compatible Material	Grease	Maximum NLGI Grade	#2
Maximum Reset Pressure	1000 psi	Compatible Metering Device	Single Line Parallel
Outlet Size	3/8 Inch	Minimum Output Volume	0.015 Cubic Inch
Model	GL-1	Minimum Operating Pressure	1850 psi
