*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

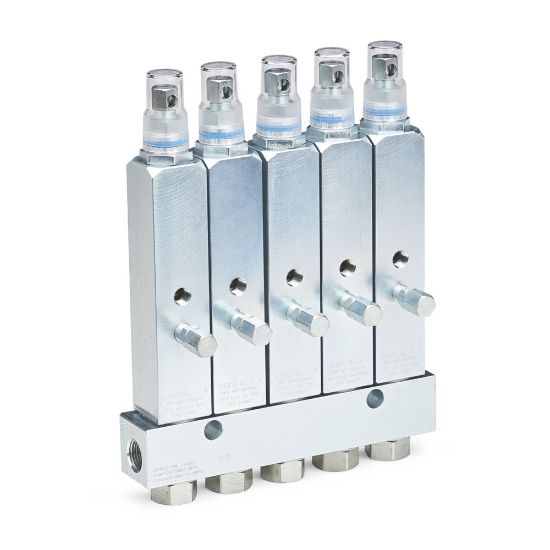

24X805

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X805

$684.95/each

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Grease Injector
Series	X	Maximum Working Pressure	414 bar; 6000 psi
Adjustable	Yes	Dispense Outlet Size	0.13 Inch
Maximum Output Volume	0.08 Cubic Inch	Dispense Outlet Thread Type	NPT
Suggested Operating Pressure	2500 psi	Inlet Size	3/8 Inch
Maximum Reset Pressure	1000 psi	Maximum Operating Pressure	6000 psi
Compatible Metering Device	Single Line Parallel	Minimum Operating Pressure	1850 psi
Minimum Output Volume	0.015 Cubic Inch	Inlet Thread Type	NPT
Compatible Material	Grease	Maximum NLGI Grade	#2
Model	GL-1	Outlet Size	3/8 Inch
Outlet Thread Type	NPT	Cycle Indicator	Visual
