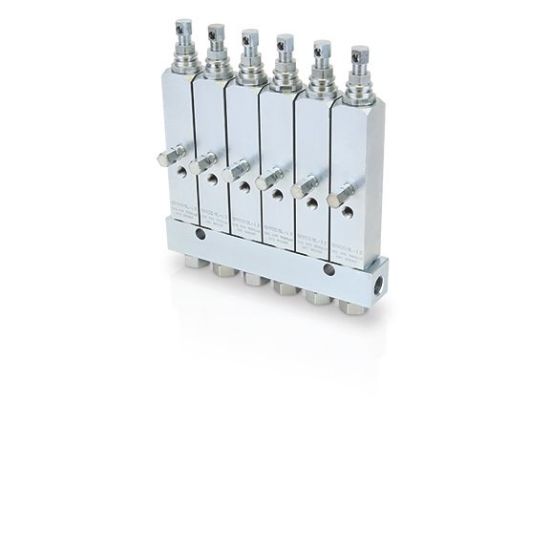

24X806

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X806

$872.10/each

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Grease Injector
Series	X	Maximum Working Pressure	414 bar; 6000 psi
Adjustable	Yes	Dispense Outlet Size	0.13 Inch
Maximum Output Volume	0.08 Cubic Inch	Dispense Outlet Thread Type	NPT
Suggested Operating Pressure	2500 psi	Outlet Thread Type	NPT
Outlet Size	3/8 Inch	Minimum Output Volume	0.015 Cubic Inch
Minimum Operating Pressure	1850 psi	Model	GL-1
Compatible Metering Device	Single Line Parallel	Cycle Indicator	Visual
Maximum Operating Pressure	6000 psi	Compatible Material	Grease
Maximum Reset Pressure	1000 psi	Inlet Thread Type	NPT
Maximum NLGI Grade	#2	Inlet Size	3/8 Inch
