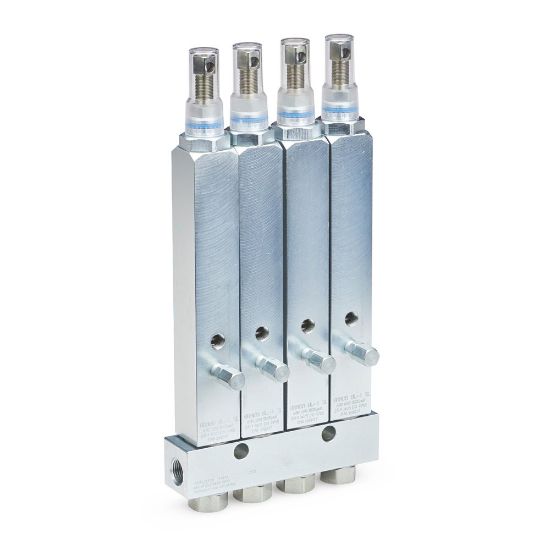

24X814

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X814

$1,045.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Grease Injector
Series	XL	Maximum Working Pressure	414 bar; 6000 psi
Adjustable	Yes	Dispense Outlet Size	0.13 Inch
Maximum Output Volume	0.315 Cubic Inch	Dispense Outlet Thread Type	NPT
Outlet Size	3/8 Inch	Outlet Thread Type	NPT
Maximum Operating Pressure	6000 psi	Cycle Indicator	Visual
Minimum Output Volume	0.035 Cubic Inch	Inlet Size	3/8 Inch
Compatible Material	Grease	Maximum NLGI Grade	#2
Maximum Reset Pressure	1000 psi	Compatible Metering Device	Single Line Parallel
Model	GL-1	Minimum Operating Pressure	1850 psi
Inlet Thread Type	NPT
