*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

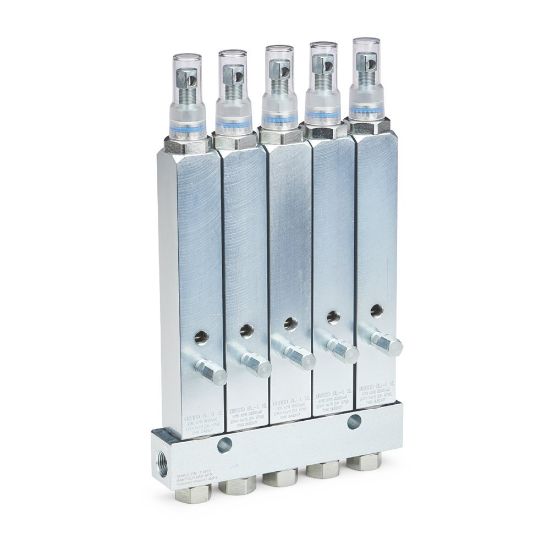

24X815

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X815

$1,301.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Grease Injector
Series	XL	Maximum Working Pressure	414 bar; 6000 psi
Adjustable	Yes	Dispense Outlet Size	0.13 Inch
Maximum Output Volume	0.315 Cubic Inch	Dispense Outlet Thread Type	NPT
Compatible Metering Device	Single Line Parallel	Maximum Reset Pressure	1000 psi
Maximum Operating Pressure	6000 psi	Inlet Size	3/8 Inch
Inlet Thread Type	NPT	Maximum NLGI Grade	#2
Compatible Material	Grease	Outlet Thread Type	NPT
Outlet Size	3/8 Inch	Minimum Operating Pressure	1850 psi
Model	GL-1	Cycle Indicator	Visual
Minimum Output Volume	0.035 Cubic Inch
