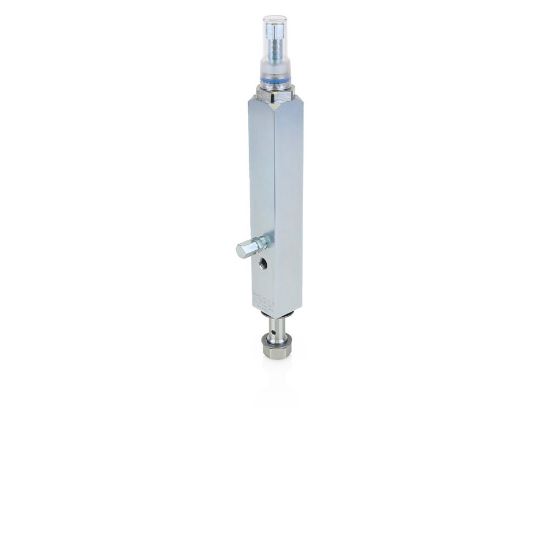

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24X817

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X817

$239.40/each

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Grease Injector
Series	XL	Maximum Working Pressure	414 bar; 6000 psi
Adjustable	Yes	Dispense Outlet Size	0.13 Inch
Maximum Output Volume	0.305 Cubic Inch	Dispense Outlet Thread Type	NPT
Maximum Operating Pressure	6000 psi	Cycle Indicator	Visual
Minimum Output Volume	0.035 Cubic Inch	Compatible Material	Grease
Maximum NLGI Grade	#2	Maximum Reset Pressure	1000 psi
Compatible Metering Device	Single Line Parallel	Minimum Operating Pressure	1850 psi
Model	GL-1	Outlet Size	3/8 Inch
Outlet Thread Type	NPT
