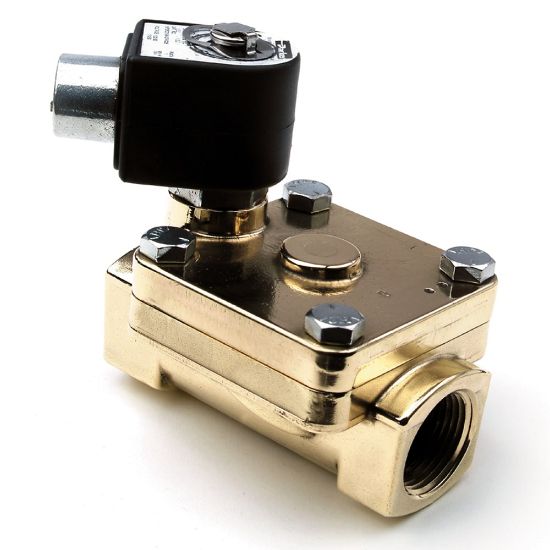

16FS5C2464ACH4C05 - 25 & S5 Series - Water, Hot Water, & Steam Valves

Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	4 in stock

SKU 16FS5C2464ACH4C05

$774.82/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Port Type	NPT	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Function	Normally Closed	Input Voltage	120/60, 110/50
Actuation Type	Internally Piloted	Power Consumption	11.0
Ingress Protection Rating	NEMA 4,4X	Media	Water, Hot Water, Steam
Installation	IOM 7320	Seal Material	PTFE
Specifications Met	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	Maximum Fluid Temperature	353
Maximum Ambient Temperature	131.0	Maximum Pressure Differential	-
Minimum Pressure Differential	1.0	Valve Type	2 Way
Maximum Steam Pressure	125	Port Size	1.0
Orifice Size	1.0	Main Flow Coefficient	12.2
Preventive Maintenance Kit	16FS5C2464ACHR	Function	Normally Closed (NC)
Installation	IOM 7320	Port Size	1.0 inch
Media	Hot Water	Seal Material	PTFE
Main Flow Coefficient	12.2 Cv	Minimum Pressure Differential	1.0 psi
Specifications Met	EMC	Input Voltage	120/60 VAC
Maximum Steam Pressure	125 psi	Power Consumption	11 W
Maximum Fluid Temperature	353 °F	Body Material	Brass
Maximum Pressure Differential	- psi	Port Type	NPT
Preventive Maintenance Kit	16FS5C2464ACHR	Actuation Type	Internal Pilot
Orifice Size	1.0 inch	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Valve Type	2-Way	Maximum Ambient Temperature	131 °F
Division	Fluid Control Division	Ingress Protection Rating	NEMA 4
