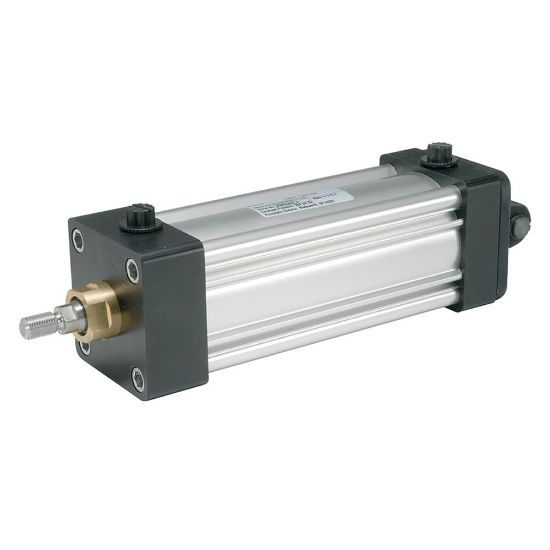

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2.50CBB4MACU14AC02.00

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 2.50CBB4MACU14AC02.00

$311.99/each

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Clear Anodized Aluminum Alloy
Series	4MA	Filtration Required	40 micron
Lube Specification	Non Lube Design	Style	Tie Rod, NFPA
Corrosion Resistant	Yes	Port Size	3/8 Inch
Stroke Length	2 Inch	Rod Thread Type	UNF
Rod End Style	Male, Small	Filter Media	Filtered Air
Seal Type	Lipseal	Max. Pressure	250 psig
Max. Temperature Range	165 °F	Mounting Style Code	BB
Mounting Style	MP1	Rod End Thread	7/16-20
Magnetic Ring	No	Cushions	Cushioned, Both Ends
Rod Diameter	5/8 Inch	Bumpers	w/Bumpers, Cap End
Piston No.	1	Bumper Thickness	1/4 Inch
End Type	Single Rod	Seal Material	Nitrile
Port Type	NPTF	Bore Size	2 1/2 Inch
Rod Material	Case Hardened, Chrome-Plated Carbon Steel	Min. Temperature Range	-10 °F
