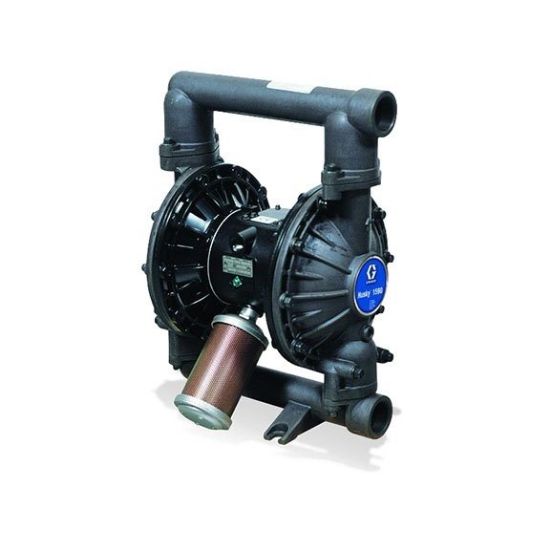

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

25A017

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25A017

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Aluminum
Type	Pneumatic	Connection Type	Threaded
Weight	33.5 lb	Series	1590
Maximum Flow Rate	100 GPM	Ball Material	316 Stainless Steel
Seat Material	Stainless Steel	Air Exhaust Port Thread Gender	Female
Air Inlet Thread Gender	Female	Air Inlet Thread Type	NPT
Maximum Solid Size	0.1875 Inch	Manifold Configuration	End Port
Fluid Outlet Thread Type	BSPT	Fluid Outlet Size	1-1/2 Inch
Fluid Inlet Size	1-1/2 Inch	Diaphragm Material	PTFE Overmold
Air Exhaust Port Size	3/4 Inch	Fluid Inlet Thread Type	BSPT
Diaphragm Compatible Material	PTFE	Maximum Cycle Rate	200 CPM
Model	Husky	Air Inlet Size	1/2 Inch
Maximum Air Consumption	125 SCFM	Maximum Operating Temperature	150 deg F
Air Exhaust Port Thread Type	NPT
