*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

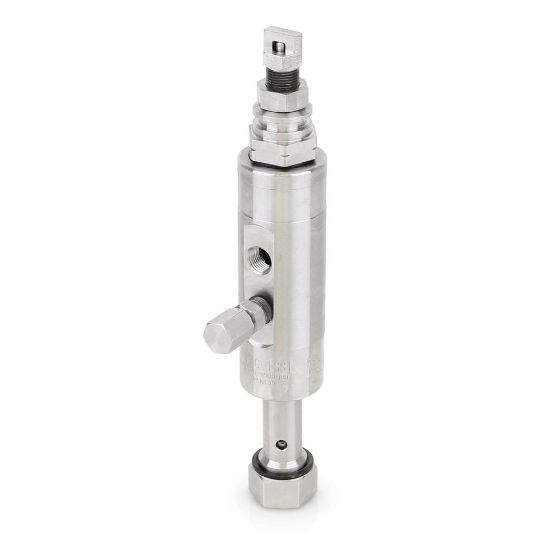

25N109

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25N109

$463.60/each

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Stainless Steel
Type	Injector	Maximum Working Pressure	241 bar; 3500 psi
Adjustable	Yes	Maximum Output Volume	0.08 Cubic Inch
Meter Type	Positive Displacement	Feedback Options	Visual Pin Indication
Number of Adjustment Turns	10	Model	GL-1
Outlet Thread Type	NPT	Maximum NLGI Grade	#2
Minimum Operating Pressure	1850 psi	Outlet Size	1/8 NPT
Outlet Thread Gender	Female	Maximum Operating Pressure	3500 psi
Minimum Working Pressure	128 bar; 1850 psi	Minimum Output Volume	0.008 Cubic Inch
Maximum Operating Temperature	374 °F	Compatible Material	Grease
Compatible Metering Device	Single Line Parallel;Single Line	Cycle Indicator	Visual Pin
