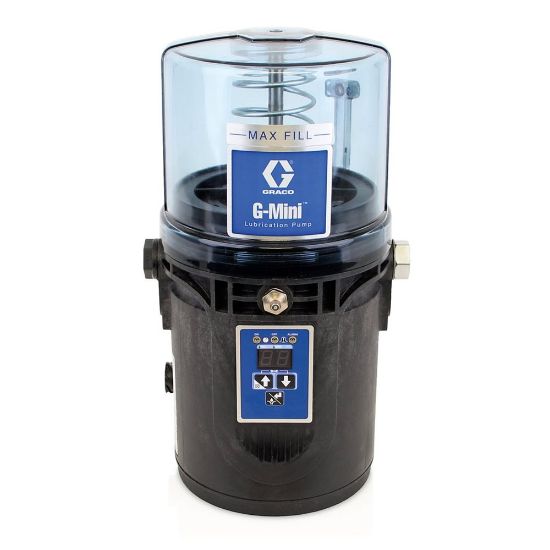

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

25R801

Name: 25R801
SKU: 25R801
Price: 1085.00 USD
Availability: LimitedAvailability

Manufacturer: Graco

Availability:

1 Limited Stock

Olivette, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 25R801

$1,085.00/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Electric Piston Pump
Maximum Working Pressure	4061 PSI	Maximum Flow Rate	3 ci/min
Standard	CE, EAC	Minimum Overall Height	12.2 Inch
No. of Pump Elements	Up to 2	No. of Sensor Inputs	1
Compatible Metering Device	Series Progressive	Minimum Voltage	18 VDC
Overall Depth	6.57 Inch	Compatible Material	Grease
IP Rating	IP69K	Fluid Inlet Type	Zerk Fitting to Fill Reservoir
Maximum Operating Temperature	158 °F	Minimum Operating Temperature	5 °F
Voltage	24 VDC	Fluid Outlet Size	1/4 Inch
NLGI Grade	#2	Reservoir Size	1 L
Fluid Outlet Thread Gender	Female	Control Options	Internal Controller
Fluid Outlet Type	NPSF	Power Connection Type	CPC
Maximum Voltage	32 VDC	Overall Width	6.97 Inch
