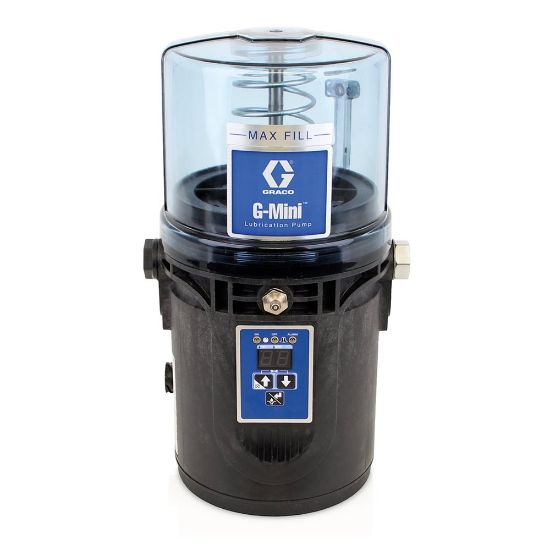

25R806

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25R806

$1,178.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	8.8 lb
Maximum Working Pressure	4061 psi	Number of Pump Elements	Up to 2
Fluid Outlet Size	1/4 Inch	Approvals	CE, EAC
Voltage	12 VDC	Control Options	Internal Controller
Reservoir Size	1 L	Maximum Operating Temperature	158 deg F
Fluid Outlet Thread Type	NPSF	Overall Width	6.97 Inch
Model	G-Mini	Number of Sensor Inputs	1
Overall Depth	6.57 Inch	Overall Height	12.2 Inch
Power Connection Type	CPC	Maximum NLGI Grade	#2
IP Rating	IP69K	Maximum Voltage	16 VDC
Minimum Operating Temperature	-40 deg F	Fluid Outlet Thread Gender	Female
Fluid Inlet Type	Zerk Fitting to Fill Reservoir	Minimum Voltage	9 VDC
