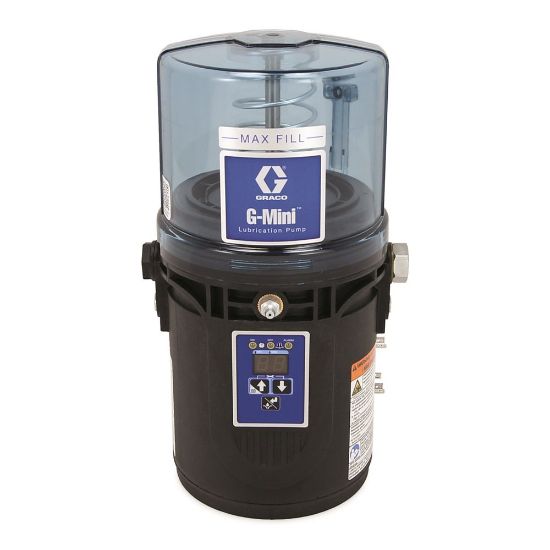

25R821

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25R821

$1,030.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	8.8 lb
Maximum Working Pressure	4061 psi	Minimum Operating Temperature	5 deg F
Power Connection Type	DIN	Number of Sensor Inputs	1
Approvals	CE, EAC	Model	G-Mini
Maximum NLGI Grade	#2	Maximum Voltage	32 VDC
Overall Width	6.97 Inch	Minimum Voltage	18 VDC
Fluid Inlet Type	Zerk Fitting to Fill Reservoir	Overall Height	12.2 Inch
IP Rating	IP69K	Overall Depth	6.57 Inch
Fluid Outlet Size	1/4 Inch	Number of Pump Elements	Up to 2
Fluid Outlet Thread Type	NPSF	Voltage	24 VDC
Reservoir Size	1 L	Fluid Outlet Thread Gender	Female
Control Options	Internal Controller	Maximum Operating Temperature	158 deg F
