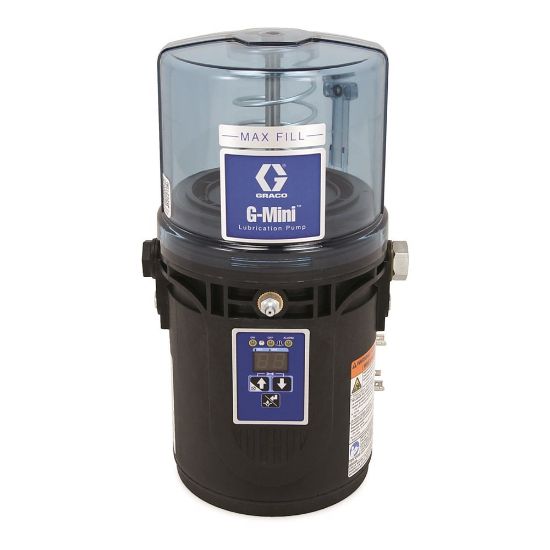

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

25R823

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25R823

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	4061 psi
Weight	8.8 lb	Reservoir Size	1 L
Voltage	12 VDC	Control Options	Internal Controller
Fluid Outlet Thread Gender	Female	Fluid Inlet Type	Zerk Fitting to Fill Reservoir
Minimum Voltage	9 VDC	Number of Sensor Inputs	1
Number of Pump Elements	Up to 2	Fluid Outlet Size	1/4 Inch
Approvals	CE, EAC	Model	G-Mini
Maximum Operating Temperature	158 deg F	Fluid Outlet Thread Type	NPSF
Overall Width	6.97 Inch	Power Connection Type	DIN
Minimum Operating Temperature	5 deg F	Overall Height	12.2 Inch
Maximum NLGI Grade	#2	IP Rating	IP69K
Overall Depth	6.57 Inch	Maximum Voltage	16 VDC
