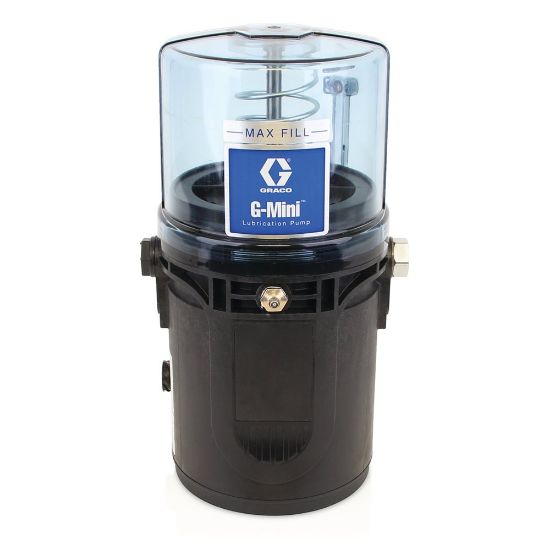

25R824

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25R824

$1,178.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	4061 psi
Weight	8.8 lb	Maximum Voltage	32 VDC
Overall Width	6.97 Inch	Fluid Inlet Type	Zerk Fitting to Fill Reservoir
IP Rating	IP69K	Overall Depth	6.57 Inch
Maximum NLGI Grade	#2	Overall Height	12.2 Inch
Fluid Outlet Thread Gender	Female	Control Options	Internal Controller
Reservoir Size	1 L	Fluid Outlet Thread Type	NPSF
Voltage	24 VDC	Maximum Operating Temperature	158 deg F
Minimum Operating Temperature	-40 deg F	Minimum Voltage	18 VDC
Model	G-Mini	Number of Sensor Inputs	1
Power Connection Type	DIN	Fluid Outlet Size	1/4 Inch
Approvals	CE, EAC	Number of Pump Elements	Up to 2
