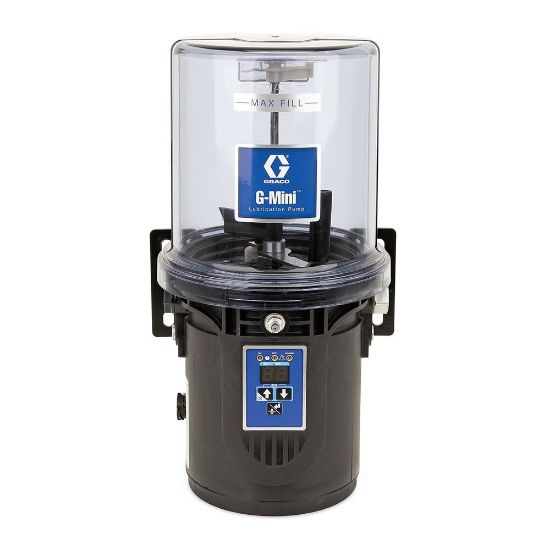

25R833

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25R833

$1,254.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	8.8 lb
Maximum Working Pressure	4061 psi	Minimum Operating Temperature	5 deg F
Number of Sensor Inputs	1	Maximum Voltage	32 VDC
Overall Width	6.97 Inch	Overall Depth	6.57 Inch
Power Connection Type	CPC	Maximum NLGI Grade	#2
Overall Height	12.2 Inch	IP Rating	IP69K
Reservoir Size	2 L	Fluid Outlet Thread Gender	Female
Fluid Inlet Type	Zerk Fitting to Fill Reservoir	Minimum Voltage	18 VDC
Fluid Outlet Size	1/4 Inch	Voltage	24 VDC
Number of Pump Elements	Up to 2	Approvals	CE, EAC
Control Options	Internal Controller	Fluid Outlet Thread Type	NPSF
Maximum Operating Temperature	158 deg F
