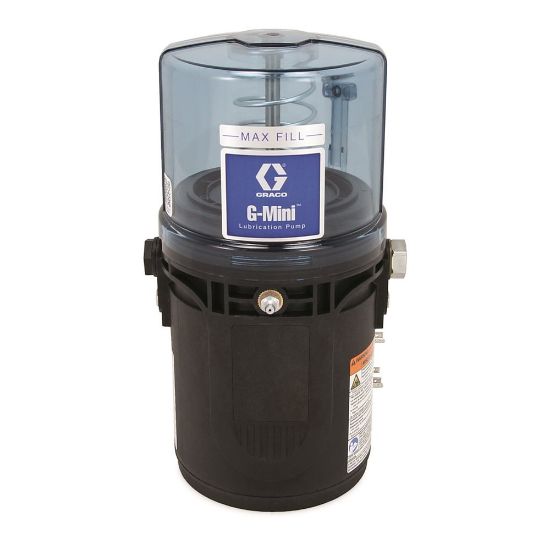

25R835

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25R835

$1,054.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	8.8 lb
Maximum Working Pressure	4061 psi	Maximum Voltage	32 VDC
Overall Width	6.97 Inch	Overall Depth	6.57 Inch
Maximum NLGI Grade	#2	Reservoir Size	2 L
IP Rating	IP69K	Minimum Voltage	18 VDC
Overall Height	12.2 Inch	Fluid Inlet Type	Zerk Fitting to Fill Reservoir
Control Options	Internal Controller	Fluid Outlet Thread Gender	Female
Maximum Operating Temperature	158 deg F	Voltage	24 VDC
Fluid Outlet Thread Type	NPSF	Power Connection Type	DIN
Number of Pump Elements	Up to 2	Minimum Operating Temperature	5 deg F
Fluid Outlet Size	1/4 Inch	Number of Sensor Inputs	1
Approvals	CE, EAC
