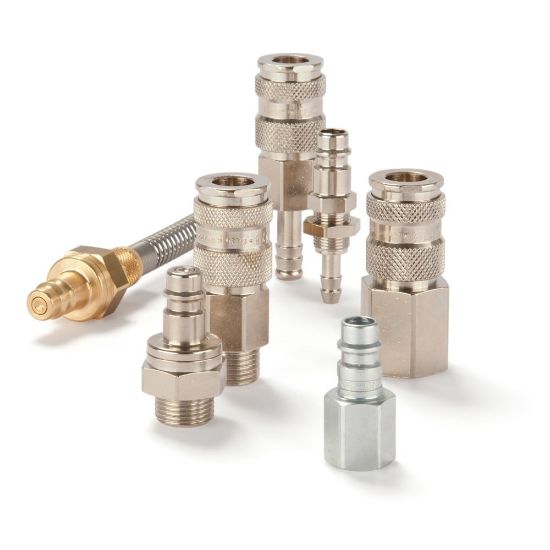

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

25SSIN17SXZ

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 25SSIN17SXZ

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	NPTF Ansi B 1.20.3, Female, NPTF
Function	Safety (Straight-Through)	Connection Size	3/8 Inch
Technology	Pneumatics	For Fluid Type	Compressed Air
Flow Rate	1800 lpm	Operation Type	Sleeve
Standard	ATEX	Material	Steel
Materials of Construction	Steel	Type	Pneumatic Quick Couplings
Length	30 to 155 mm	Shape	Straight
Compatible Fitting	Series 1600 Coupler	Application	General Industrial
Valve Included	No	Minimum Operating Temperature	-40 °F
Plating Type	Zinc-Plated	Interchange Type	European Profile
Product Series	Series 25 - Safety	Coupling Half	Plug - Safety
Version	Single Shut-Off	Valve Type	Standard Valve
Hex Size	13 to 24 mm	Flow Diameter	7.8 mm (Nominal)
Maximum Operating Temperature	464 °F
