*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

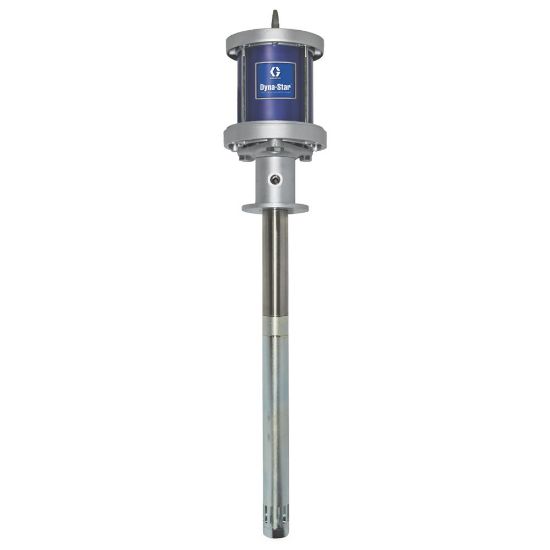

26A967

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 26A967

$10,003.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	12000 psi
Piston Travel	4.75 Inch	Weight	26.8 lb
Air Motor Size	6 Inch	Series	120:1
Minimum Air Inlet Pressure	40 psi	Air Inlet Thread Type	NPT
Model	Dyna-Star	Air Inlet Thread Gender	Female
Number of Outlets	1	Fluid Outlet Size	13/16 Inch
Component Technology	Air Motor; Shovel-loading pump tube	Overall Height	43.5 Inch
Fluid Outlet Thread Type	UNC	Reservoir Size	120 lb
Pump Ratio	120 to 1	Output Per Cycle	28 Cubic cm
Maximum Air Inlet Pressure	100 psi	Lower Type	Integrated Shovel Loading
Maximum Intermittent Cycle Rate	60 CPM	Motor Type	Pneumatic
Air Inlet Size	0.5 Inch	Maximum NLGI Grade	2
Minimum Operating Temperature	-30 deg F	Number of Pump Elements	1
Approvals	CE;ATEX;EAC	Maximum Fluid Output Pressure	12000 psi
Fluid Outlet Thread Gender	Female	Air Motor Effective Diameter	6 Inch
Sound Pressure Level	70.5 dB(A)	Maximum Operating Temperature	180 deg F
Maximum Continuous Cycle Rate	60 CPM	Maximum Cycle Rate	60 CPM
Maximum Air Consumption	60 SCFM	Sound Power Level	78 dB(A)
