*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

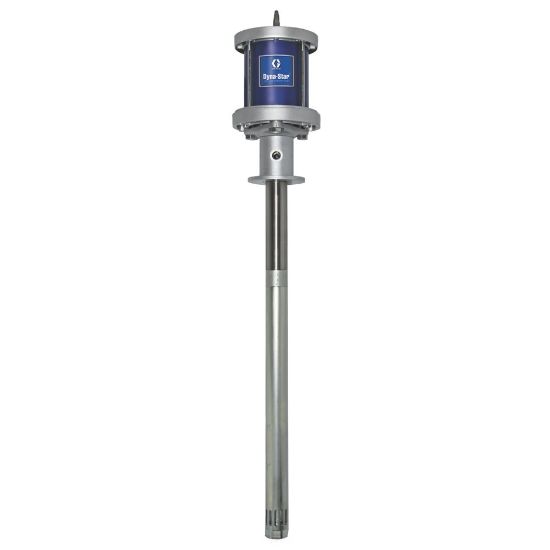

26A968

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 26A968

$9,937.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Air Inlet Pressure	40 psi
Air Motor Size	6 Inch	Series	120:1
Piston Travel	4.75 Inch	Weight	64 lb
Maximum Working Pressure	12000 psi	Air Motor Effective Diameter	6 Inch
Maximum Operating Temperature	180 deg F	Reservoir Size	400 lb
Maximum Air Consumption	60 SCFM	Overall Height	50.3 Inch
Fluid Outlet Thread Gender	Female	Maximum Cycle Rate	60 CPM
Sound Power Level	78 dB(A)	Model	Dyna-Star
Sound Pressure Level	72 dB(A)	Number of Outlets	1
Maximum Continuous Cycle Rate	60 CPM	Fluid Outlet Thread Type	UNC
Maximum Intermittent Cycle Rate	60 CPM	Approvals	CE;ATEX;EAC
Number of Pump Elements	1	Lower Type	Integrated Shovel Loading
Maximum Air Inlet Pressure	100 psi	Air Inlet Thread Type	NPT
Output Per Cycle	28 Cubic cm	Pump Ratio	120 to 1
Component Technology	Air Motor; Shovel-loading pump tube	Air Inlet Thread Gender	Female
Fluid Outlet Size	13/16 Inch	Minimum Operating Temperature	-30 deg F
Motor Type	Pneumatic	Maximum Fluid Output Pressure	12000 psi
Air Inlet Size	0.5 Inch	Maximum NLGI Grade	2
