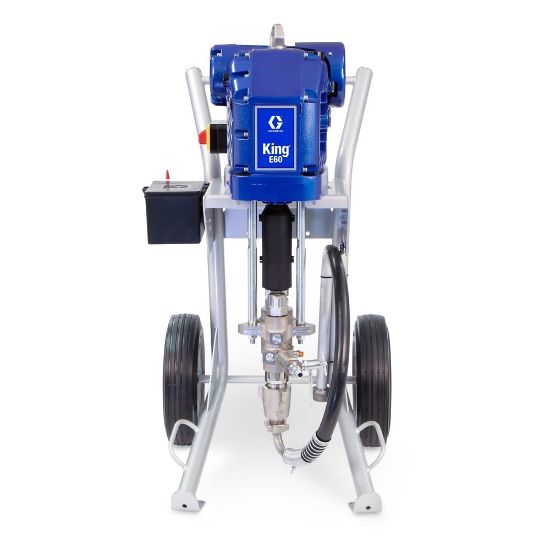

273247

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 273247

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Hose Inside Diameter	0.375 Inch
Maximum Flow Rate	0.7 GPM	Maximum Working Pressure	6000 psi
Type	Single Leg	Minimum Generator Power	5 kW
Inlet Paint Strainer	8 Mesh;16 Mesh	Minimum Hose Length	50 ft
Series	E60	Number of Guns	1-2
Frame Configuration	Heavy-Duty Cart	Phase	1
Lower Type	115cc Xtreme Duty Lower	Fluid Outlet Thread Type	NPT
Maximum Hose Length	210 ft	Pump Type	Pneumatic Piston
Outlet Paint Filter	60 Mesh	Fluid Outlet Thread Gender	Male
Motor Type	Electric;Hazardous Locations	Maximum Sound Pressure Level	77 dB(A)
Maximum Tip Size	0.021 Inch	Frequency	50/60 Hz
Pressure Control Type	Electric Control Knob	Control Type	Pressure Control Knob
Minimum Operating Temperature	23 deg F	Material Application	Protective Coatings
Fluid Inlet Thread Type	NPT	Pump Ratio	60:1 (6000 psi)
Maximum Operating Temperature	120 deg F	Fluid Inlet Thread Gender	Male
Pump Sleeve Material	Hard Chrome;Stainless Steel	Fluid Inlet Size	1 Inch
Fluid Outlet Size	1/2;3/8 Inch	Power Source	Electric
Gun Included	No	Maximum Fluid Working Pressure	6000 psi
Model	King	Maximum Continuous Cycle Rate	44 CPM
Amperage	120V/25 A; 240V/15 A	Pump Rod Type	Chromex
Lower Configuration	Integrated Filter	Gun Model	No Applicator
Hose Inlet Diameter	3/8 Inch
