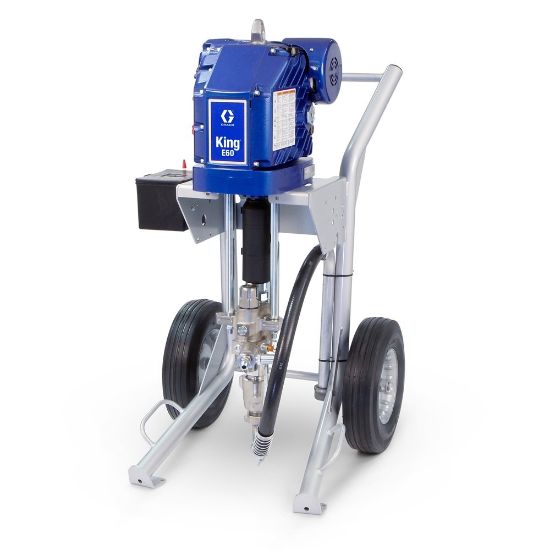

273250

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 273250

Products specifications

Attribute name	Attribute value
UOM	EA	Inlet Paint Strainer	8 Mesh;16 Mesh
Series	E60	Minimum Hose Length	50 ft
Minimum Hose Inside Diameter	0.375 Inch	Maximum Working Pressure	6000 psi
Maximum Flow Rate	0.7 GPM	Type	Single Leg
Minimum Generator Power	5 kW	Model	King
Maximum Fluid Working Pressure	6000 psi	Maximum Continuous Cycle Rate	44 CPM
Hose Inlet Diameter	3/8 Inch	Amperage	120V/25 A; 240V/15 A
Pump Rod Type	Chromex	Lower Configuration	Integrated Filter
Gun Model	XTR+	Number of Guns	1-2
Phase	1	Lower Type	115cc Xtreme Duty Lower
Fluid Outlet Thread Type	NPT	Maximum Hose Length	210 ft
Pump Type	Pneumatic Piston	Outlet Paint Filter	60 Mesh
Pressure Control Type	Electric Control Knob	Frame Configuration	Wall Mount
Fluid Outlet Thread Gender	Male	Motor Type	Electric;Hazardous Locations
Frequency	50/60 Hz	Maximum Sound Pressure Level	77 dB(A)
Maximum Tip Size	0.021 Inch	Control Type	Pressure Control Knob
Minimum Operating Temperature	23 deg F	Material Application	Protective Coatings
Pump Ratio	60:1 (6000 psi)	Fluid Inlet Thread Type	NPT
Fluid Inlet Thread Gender	Male	Maximum Operating Temperature	120 deg F
Gun Included	Yes	Pump Sleeve Material	Hard Chrome;Stainless Steel
Fluid Inlet Size	1 Inch	Fluid Outlet Size	1/2;3/8 Inch
Power Source	Electric
