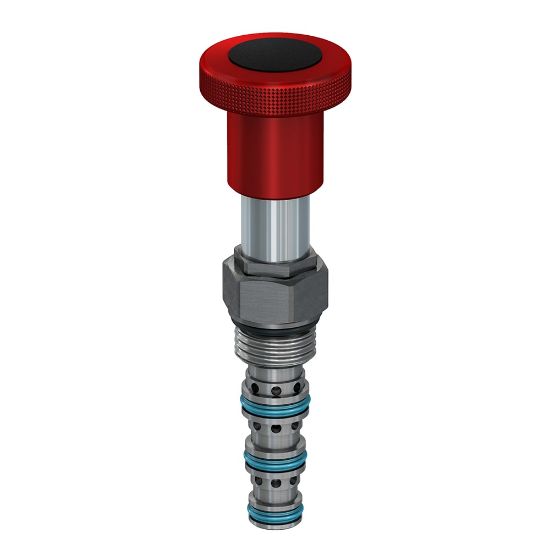

DMH085C1 - 3 Position, 4 Way Pull/Push to Shift Spool Type Manual Valve

REGIONAL - Parker’s 3-position, 4-way manual spool valves are spring centered shift by pushing and pulling with available detents and are capable of flows up to 19 lpm (5 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 421 days
Partner Available:	Backordered

SKU DMH085C1

$153.93/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Detents	No	Configuration	Closed Center
Flow Rate	4.5 GAL/MIN, 17 L/MIN	Function	Spool Type
Seal Material	D-Ring (Standard)	Valve Material	All parts steel. All operating parts hardened steel
Maximum Inlet Pressure Rating	5000 psi	Maximum Tank Pressure	35 bar
Flow Rate	4.5 Gal/min	Minimum Operating Temperature	-37 °C
Cavity Size	C08-4	Maximum Operating Pressure	5000 psi
Weight	0.12 kg	Installation Torque	36 lb-ft
Detents	No	Body Material	N/A
Configuration	Closed Center	Actuation Type	Push/Pull to shift
Force	5 kgf	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-37 to +93 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Flow Rate	17 L/min	Maximum Operating Temperature	+93 °C
Leak Rate	250 @ 5000 PSI (350 BAR) cm3/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Manual	Division	Hydraulic Systems Division
