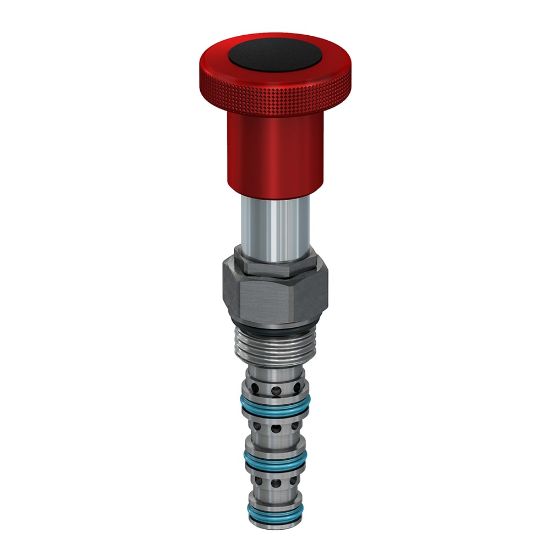

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

DMH085C2 - 3 Position, 4 Way Pull/Push to Shift Spool Type Manual Valve

REGIONAL - Parker’s 3-position, 4-way manual spool valves are spring centered shift by pushing and pulling with available detents and are capable of flows up to 19 lpm (5 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 421 days
Partner Available:	Backordered

SKU DMH085C2

$153.93/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Detents	No	Configuration	Open Center
Flow Rate	4 GAL/MIN, 15 L/MIN	Installation Torque	36 lb-ft
Operation Type	Manual	Weight	0.12 kg
Detents	No	Body Material	N/A
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	5000 psi	Configuration	Open Center
Force	11 lbf	Operating Temperature	-37 to +93 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Push/Pull to shift
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	17 L/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Leak Rate	N/A
Maximum Operating Temperature	+93 °C	Maximum Tank Pressure	35 bar
Seal Material	D-Ring (Standard)	Maximum Inlet Pressure Rating	5000 psi
Function	Spool Type	Flow Rate	4 Gal/min
Cavity Size	C08-4	Minimum Operating Temperature	-37 °C
