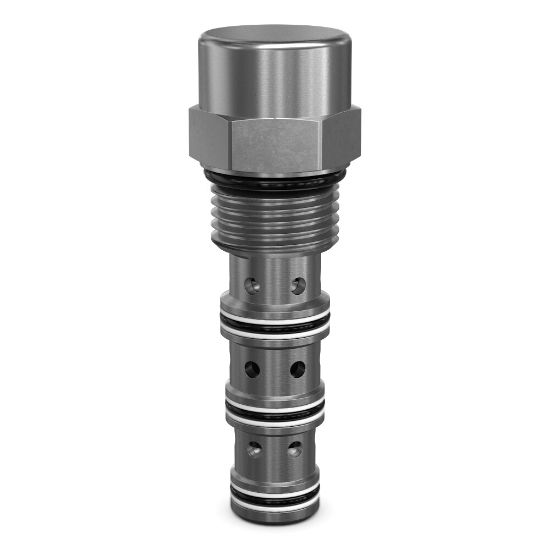

DH103A - 3 Way Pilot Operated Directional Control Valves

3-way Pilot Operated, Threaded Cartridge Spool Valves used in normally closed or normally open directional control three way circuits requiring remote pilot actuation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU DH103A

$88.96/each

Products specifications

Attribute name	Attribute value
UOM	EA	Switching Pressure	80 PSI, 5.5 BAR
Seal Material	Nitrile	Sealed Pilot Included	N/A
Flow Rate	10 GAL/MIN, 38 L/MIN	Flow Direction	2-3 Neutral, 3-4 Piloted
Configuration	Normally Open	Sealed Pilot Included	N/A
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	38 L/min
Maximum Operating Temperature	+121 °C	Leak Rate	50 @ 3500 PSI (240 BAR) cm3/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Standard Flow Rate Setting	N/A Gal/min
Function	Directional Control	Flow Direction	2-3 Neutral, 3-4 Piloted
Seal Material	Nitrile	Maximum Inlet Pressure Rating	3500 psi
Flow Rate	38 L/min	Cavity Size	C10-4
Minimum Operating Temperature	-34 °C	Switching Pressure	5.5 bar
Installation Torque	16 lb-ft	Body Material	N/A
Pilot Location	External	Division	Hydraulic Systems Division
Operation Type	Pilot operated	Weight	0.5 lb
Operating Temperature	-34 to +121 °C	Configuration	Normally Open
Maximum Operating Pressure	240 bar	Actuation Type	Pilot to shift
Drain Option	Vent to Atmosphere	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
