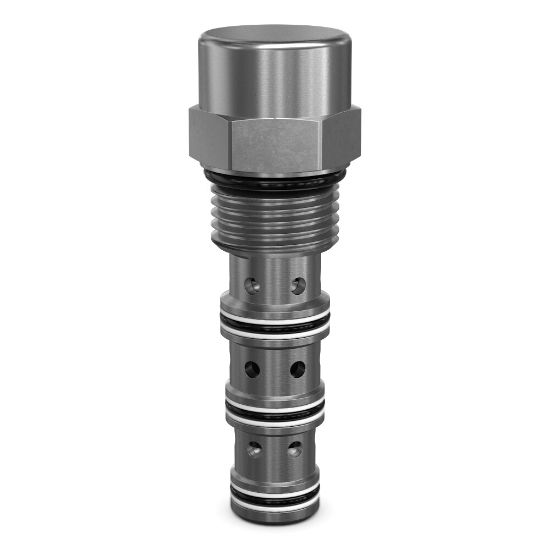

DH103C - 3 Way Pilot Operated Directional Control Valves

3-way Pilot Operated, Threaded Cartridge Spool Valves used in normally closed or normally open directional control three way circuits requiring remote pilot actuation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU DH103C

$88.96/each

Products specifications

Attribute name	Attribute value
UOM	EA	Switching Pressure	80 PSI, 5.5 BAR
Flow Direction	2-3 Neutral, 3-4 Piloted	Seal Material	Nitrile
Sealed Pilot Included	N/A	Flow Rate	10 GAL/MIN, 38 L/MIN
Configuration	Normally Open	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Nitrile	Maximum Inlet Pressure Rating	240 bar
Leak Rate	50 @ 3500 PSI (240 BAR) cm3/min	Maximum Operating Temperature	+121 °C
Sealed Pilot Included	N/A	Maximum Flow Rate	38 L/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Standard Flow Rate Setting	N/A Gal/min
Cavity Size	C10-4	Function	Directional Control
Flow Direction	2-3 Neutral, 3-4 Piloted	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Normally Open	Operating Temperature	-34 to +121 °C
Flow Rate	38 L/min	Drain Option	Internal
Minimum Operating Temperature	-34 °C	Switching Pressure	5.5 bar
Operation Type	Pilot operated	Installation Torque	16 lb-ft
Division	Hydraulic Systems Division	Weight	0.23 kg
Maximum Operating Pressure	3500 psi	Pilot Location	External
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Body Material	N/A
Actuation Type	Pilot to shift
