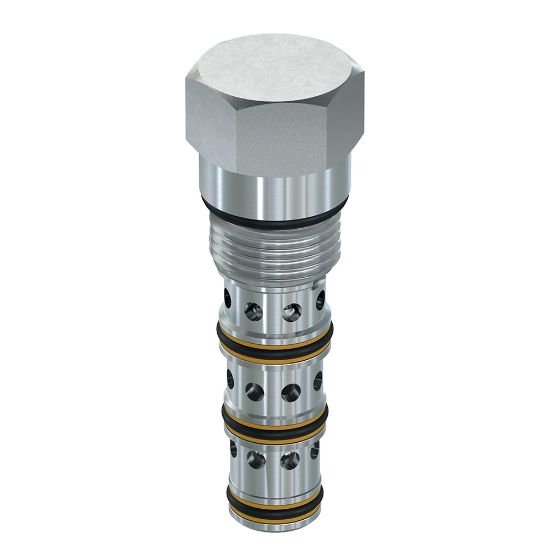

N04A4-5.0N - 3 Way Pilot Operated Directional Control Valves

3-way Pilot Operated, Threaded Cartridge Spool Valves used in normally closed or normally open directional control three way circuits requiring remote pilot actuation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU N04A4-5.0N

$327.36/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Sealed Pilot Included	No	Flow Direction	3-4 Neutral, 2-3 Piloted
Flow Rate	24 GAL/MIN, 90 L/MIN	Switching Pressure	73 PSI, 5 BAR
Configuration	Selector	Flow Rate	24 Gal/min
Drain Option	Internal	Actuation Type	Pilot to shift
Operating Temperature	-34 to +121 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Selector	Switching Pressure	5 bar
Standard Flow Rate Setting	13 Gal/min	Division	Mobile Hydraulic Systems Division Europe
Installation Torque	50 Nm	Operation Type	Pilot operated
Body Material	N/A	Pilot Location	External
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Weight	0.17 kg
Maximum Operating Pressure	6000 psi	Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min
Maximum Inlet Pressure Rating	420 bar	Maximum Operating Temperature	+121 °C
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Nitrile
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Sealed Pilot Included	No
Maximum Flow Rate	24 Gal/min	Cavity Size	C10-4
Minimum Operating Temperature	-30 °F	Function	Directional Control
Flow Direction	3-4 Neutral, 2-3 Piloted
