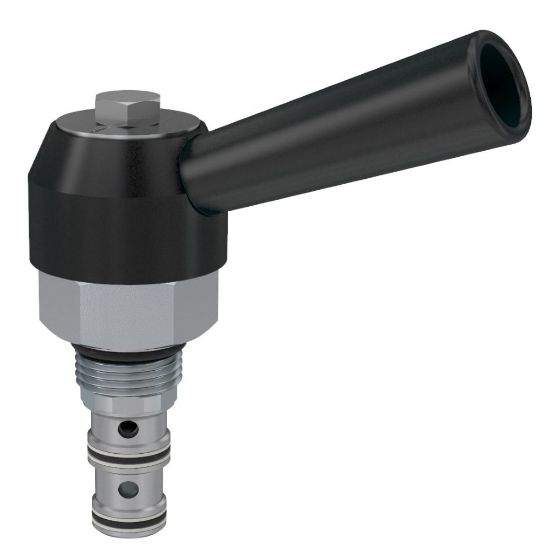

DM103K - 3 Way Rotary Type Manual Valve

REGIONAL - Parker’s manually operated 3-way, 2 or 3-position directional control spool valve is capable of flows up to 23 lpm (6 gpm) and pressures as high as 240 bar (3500 psi). Knob and lever actuators are available with detents.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DM103K

$95.05/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Knob	Detents	N/A
Function	Spool Type	Maximum Tank Pressure	500 psi
Maximum Inlet Pressure Rating	3500 psi	Rotation Angle	90 °
Flow Rate	6 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Cavity Size	C10-3
Installation Torque	16 lb-ft	Division	Hydraulic Systems Division
Body Material	N/A	Operation Type	Manual
Operating Temperature	-30 to +250 °F	Configuration	Knob
Maximum Operating Pressure	3500 psi	Detents	N/A
Actuation Type	Rotary	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	0.11 kg	Seal Material	Nitrile
Valve Material	Stem, stainless steel. All other parts hardened steel.	Maximum Flow Rate	22.5 L/min
Maximum Operating Temperature	+250 °F	Leak Rate	164 @ 3500 PSI (240 BAR) cm3/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids
