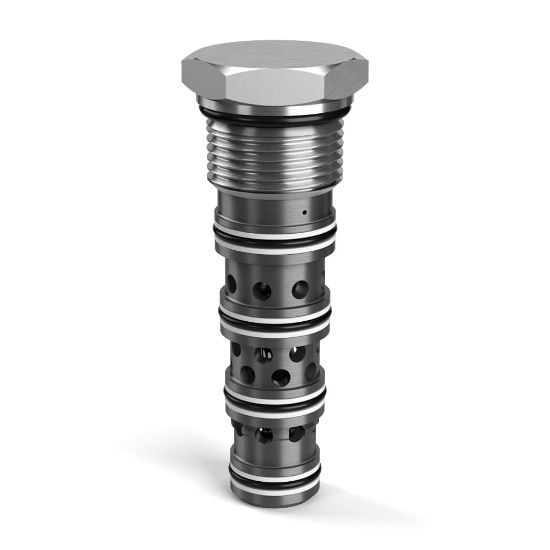

N5A125-6.9N - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	2 Limited Stock

SKU N5A125-6.9N

$243.48/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Switching Pressure	100 PSI, 6.9 BAR	Flow Rate	42 GAL/MIN, 160 L/MIN
Flow Direction	2-3 Neutral, 3-4 Piloted	Configuration	Open Transition
Standard Flow Rate Setting	24 GAL/MIN, 90 L/MIN	Valve Material	All parts steel. All operating parts hardened steel
Maximum Flow Rate	42 Gal/min	Seal Material	Nitrile
Leak Rate	275 @ 2900 PSI (200 BAR) cm3/min	Maximum Operating Temperature	+250 °F
Standard Flow Rate Setting	24 Gal/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Inlet Pressure Rating	420 bar	Function	Diverter
Flow Direction	2-3 Neutral, 3-4 Piloted	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Flow Rate	42 Gal/min	Cavity Size	5A
Minimum Operating Temperature	-34 °C	Switching Pressure	6.9 bar
Installation Torque	63 lb-ft	Operation Type	Pilot Operated
Division	Mobile Hydraulic Systems Division Europe	Body Material	N/A
Weight	0.76 lb	Maximum Operating Pressure	6000 psi
Configuration	Open Transition	Pilot Location	External
Drain Option	External	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Actuation Type	Switching	Operating Temperature	-34 to +121 °C
